SOP Start Up Gas Compressor

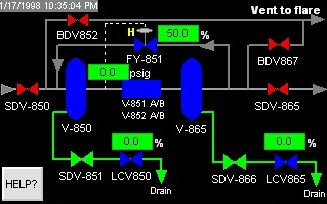

4 Main Facilities :

1. Suction Scrubber (V-850)
2. Compressor  (C-855)
3. After Cooler (E-860)
4. Discharge Scrubber (V-865)

 {googleads}

 SOP START UP :

1. Check Inlet & Outlet Gas Compressor
2. Check Electricity Power Supply
3. Check Air Supply
4. Reset Shutdown Signal

1. Check Water Cooling System
2. Check Lubrication Oil System
3. Check Lubrication Draining System
4. Check Venting
5. Check safety relief valve (Open)
6. SDV Close
7. BDV Close ( Outlet Valve of BDV Open)
8. Check Control Valve upstream & downstream (open). Bypass Close
9. Power On water pump, cooling fan, prelubrication pump. Select Auto
10. Power On 2 fan after cooler & compressor motor on MCC, select Auto
11. Panelview :

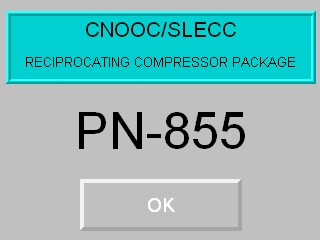

    1. Click Ok & Click Shutdown Reset

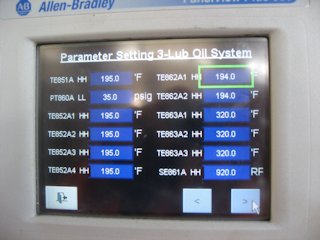

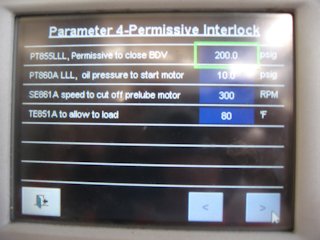

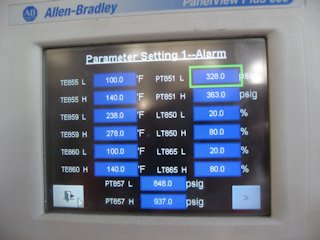

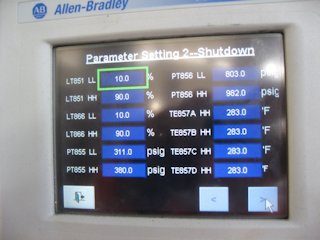

    1. Check Set Point

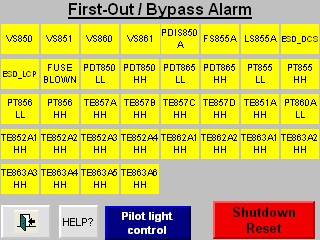

    1. Press Return Main menu & Click First Out Shutdown






     {googleads}

    1. Click Pilot light control

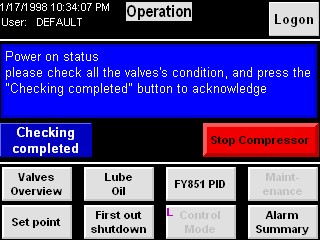

    2. Return to main menu, check SDV & BDV. Open inlet & outlet valve of compressor skid. Click " Checking Completed " button
    3. Purging if needed
    4. Check FY 851 Full Open, then click " Yes manul valve opened ". Ready, click "START"
    5. Check Alarm, FY 851 choose " Auto " or " Manual " load
